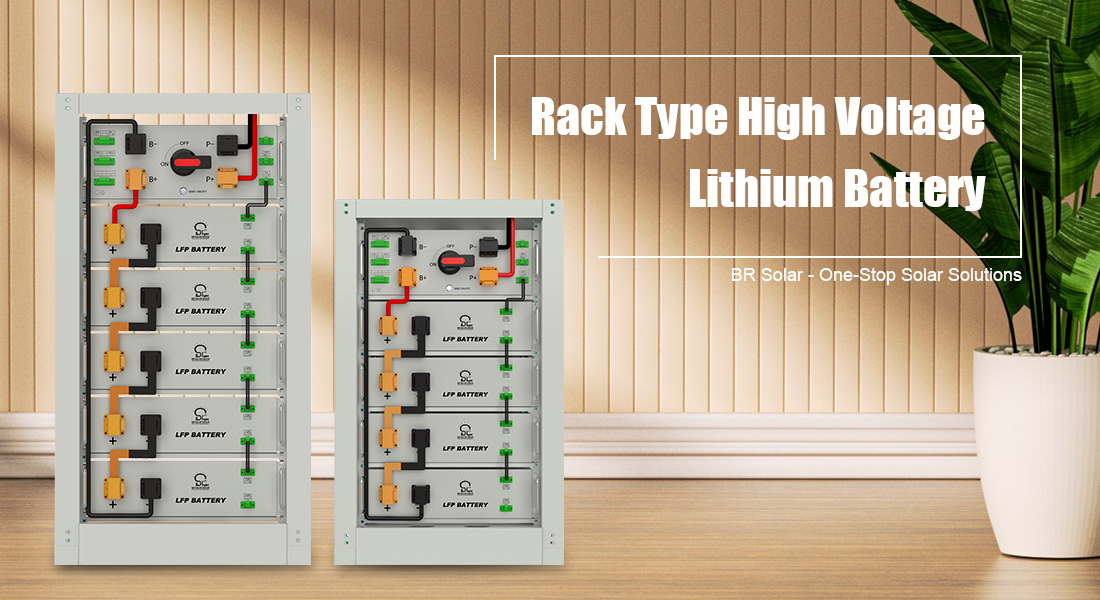

Rack Type High Voltage Lithium Battery
Rack Type High Voltage Lithium Battery
◇ Safety & Reliable
LiFePO4 & Smart BMS
◇ Optimal Electricity Cost
Long cycle life and superior performance
◇ Compact Size & East Installation

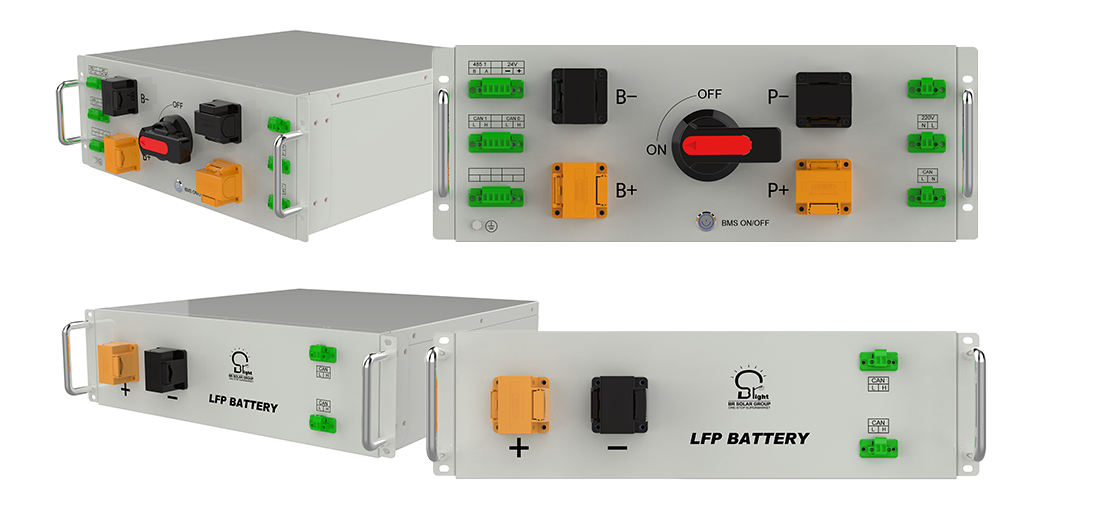

Module and Rack design for quick installation
◇ Expand capacity flexibly
Parallel to expand capacity easily
◇ High compatibility BMS
Seamless communication with most brands inverters
◇ Multi-Applications:
Self-Use, Peak Shaving, UPS, Backup, ESS, HESS, BESS.
Specification
| MODEL |
BRLF-HV15K15SN |
BRLF-HV20K15SN |
BRLF-HV25K15SN |
BRLF-HV30K15SN |
BRLF-HV35K15SN |
BRLF-HV40K15SN |
| Model No |
144V 106AH |
192V 106AH |
240V106AH |
288V106AH |
336V106AH |
384V106AH |
| Nominal Voltage |
144V |
192V |
240V |
288V |
336V |
384V |
| Nominal Capacity |
106AH |
|||||
| Module Dimension (mm) |
440*442*133mm*3 |
440*442*133mm*4 |
440*442*133mm*5 |
440*442*133mm*6 |
440*442*133mm*7 |
440*442*133mm*8 |
| RACK Dimension (mm) |
600*550*608mm |
600*550*760mm |
600*550*912mm |
600*550*1064mm |
600*550*1216mm |
600*550*1368mm |
| Weight(kg) |
165KG |
210KG |
258KG |
305KG |
352KG |
406KG |
| SPECIFICATIONS |
PARAMETER |
|||||
| Nominal Capacity (KWH) |
15.26KWH |
20.35KWH |
25.44KWH |
30.52KWH |
35.61KWh |
40.7KWH |
| Discharge Cut-off Voltage (V) |
126 |
168 |
210 |
252 |
294 |
336 |
| Charge Cut-off Voltage (V) |
160 |
213 |
266 |
320 |
373 |
426 |
| Recommend Charge
/Discharge Current (A) |
60 |
|||||
| Max. Charge/Discharge Current(A) |
120 |
|||||
| Communication |
RS485/RS232/CAN |
|||||
| Working Temperature |
-10℃~50℃ Charge |
|||||
| Transport or Storage Temperature Range |
- 20℃~60℃ |
|||||
| Certification |
CE/IEC/UL/UN38.3/MSDS |
|||||
| Design Life |
15years+ |
|||||
| Cycle Life |
（0.5C/0.5C-80% D0D）>6000 times |
|||||
| Series Function |
Support 16 units in Series |
|||||
| Certification |
UN38.3/MSDS/ROHS |
|||||
Matching the Inverter
