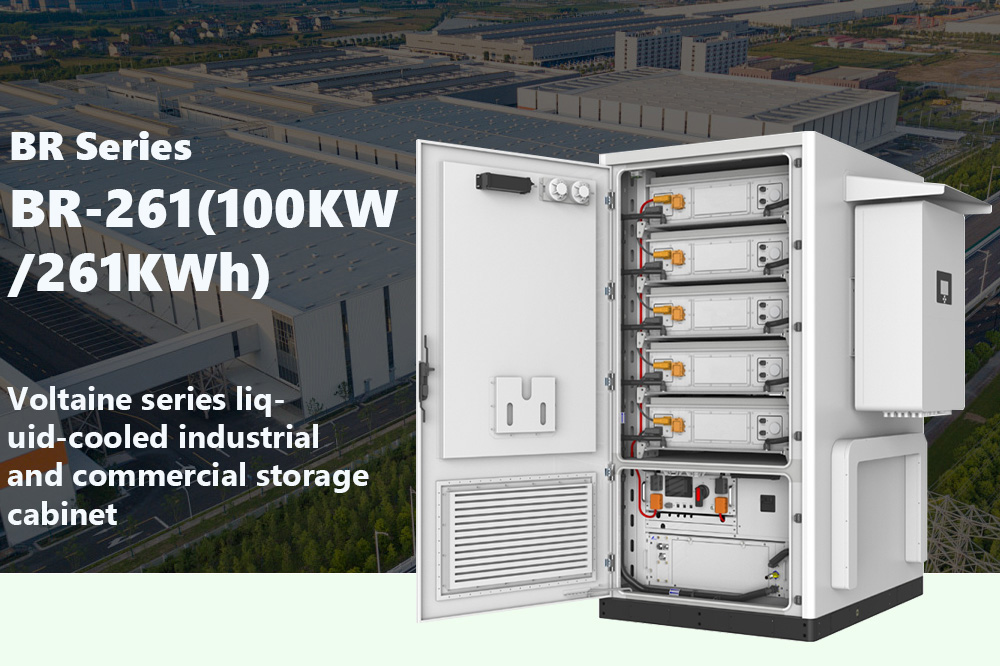

100KW261KWH Liquid Cooling All in one Cabinet
100KW261KWH Liquid Cooling All in one Cabinet
Features
Multi-fusion
Built-in EMS，PCS and BMS, auxiliary power redundancy design;
Intelligent temperature control
Operating at full power,the maximum temperature of the battery is below 38°C，and the temperature difference is less than 3°C;
Reliable
One cluster management,cloud-edge collaboration,real-time data monitoring,and fault warning;
Safety
Lithium lron Phosphate(LFP)batteries, battery packs and system all use aerosol fire extinguishing fluids;
High-protection
5cm fire proof rock wool,1 hour flame retardant protection,C4 shell protection;
Parameters
|
Model |
BR-261 |
|
System parameters |
|
|
Rated output power(KW) |
100 |
|
AC output frequency/voltage |
50/60Hz;380/400Vac |
|
Grid type |
Three-phase five-wire |
|
Capacity(kWh) |
261 |
|
Dimens ions(W/D/H,mm) |
1100*1400*2380 |
|
Weight(kg) |
≤3000 |
|
Battery operating voltage(V) |
650~949 |
|
Maximum cycle efficiency |
92% |
|
Communication |
ETH/4G |
|
Ambient temperature(℃) |
-20~55 |
|
Operating altitude(m) |
≤2000 |
|
IP |
IP55 |
|
Corrosion protection level |
C4 |
|
Installation |
Ground mounted |

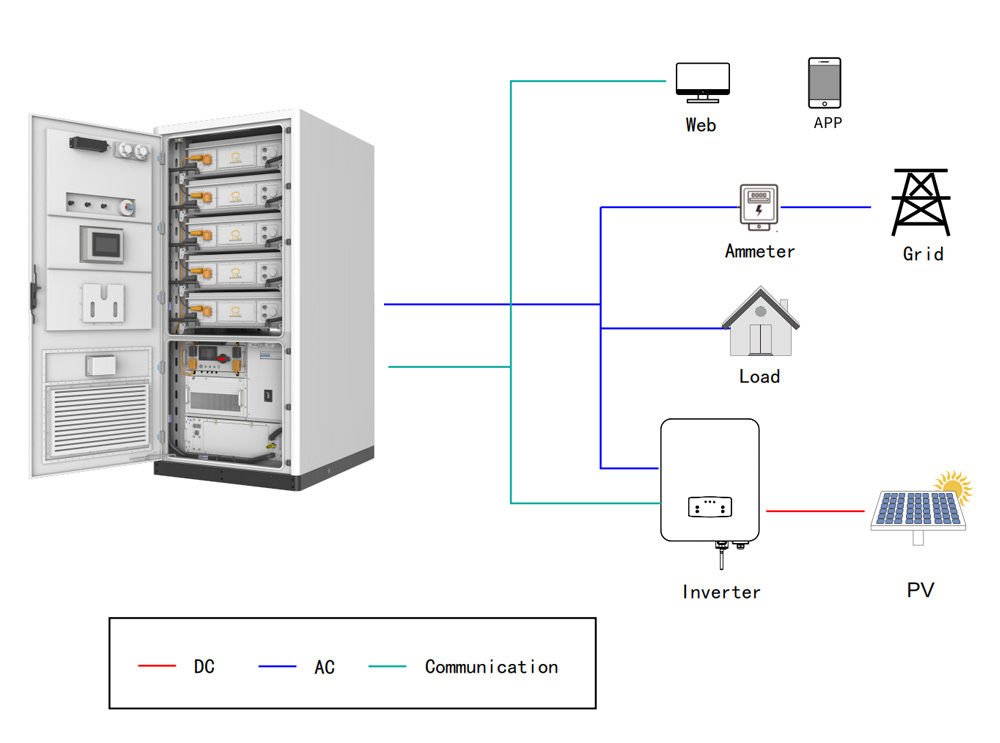

Application topology
Electricity bill savings
Peak shaving and valley flling to reduce electricity bills Demand control reduces capacity electricity bills.
Scenery consumption
The surplus electricity generated by PV during the day is stored for use at night.
The discharge smooths out the output fluctuations of wind power.
Optical storage microgrid
It can realize the application of electricity cost saving,back up power supply,etc,and provide stable power supply for areas
that cannot be connected to the power grid such as islands and mountainous areas.
Power expansion
Discharges when the distribution capacity cannot meet the load demand to meet the load demand, so as to achieve the effect of virtual capacity expansion.
The standby power supply
Discharged in the event of a power outage or power rationing in the power grid to ensure power consumption.
Demand response
Receive grid dispatch and enjoy dispatch subsidies.
BR SOLAR Group has been successfully installing our products to overseas markets over 159 Countries including Government organization, Ministry of Energy, United Nations Agency, NGO & WB projects, Wholesalers, Store Owner, Engineering Contractors, Schools, Hospitals, Factories, Homes,etc. Main Markets: Asia, Europe, Middle & South America, Africa, etc.
Normal Industrial/Commercial Energy Storage
1.Capacity From 30KW to 8MW, Hot Size 50KW, 100KW, 1MW, 2MW
2.Support OEM/OBM/ODM, Customized system design solution
3.Powerful Performance , Safe technology and multi-lever protection Guidance for installation
Best solar energy solution will be provided.
